Description
This machine is suitable for
Various small quantity mixed packaging / single multiple quantity packaging
The PLC control system is easy to operate. Strong sealing, smooth and elegant bag shape, high efficiency and durability are the preferred elements. It can provide automatic order placement, counting, packaging and printing. Equipped with exhaust, printer, labeller, conveyor belt and checkweigher makes it even better.
Features:
- 7-inch color touch control screen, programmable imported PLC control system, easy to operate;
- Parameters can be set (such as weight, bag length, packaging target quantity, reset, etc.);
- Intelligent temperature controller control, firm sealing, good sealing performance, exquisite and beautiful packaging;
- Automatically complete all tasks such as material handling, weighing, filling, bag making, sealing, and cutting;
- Independent research and development of material handling mechanism and weighing system, with fast operation speed and high accuracy;
- It can be equipped with a coding machine, a labeling machine, a scale for repeated inspection, a finished product conveyor, and a manipulator.
Parameters：
| Model: | DXD-320T4 |
| Bag Size: | W:30-180MM, L:30-180mm |
| Packing material: | OPP/PE,PAC/PP,PA/PE,PET/CPP ETC Composite Membrane |
| Packing Speed: | 40-60bags/min(the speed depends on type of products and quantity) |
| Voltage: | AC220V,50/60HZ |
| Power: | 2.5KW |
| Pressure： | 0.6-0.8Mpa |
| Sealing Style: | 3 sides,4 sides,back sealing |
Application:

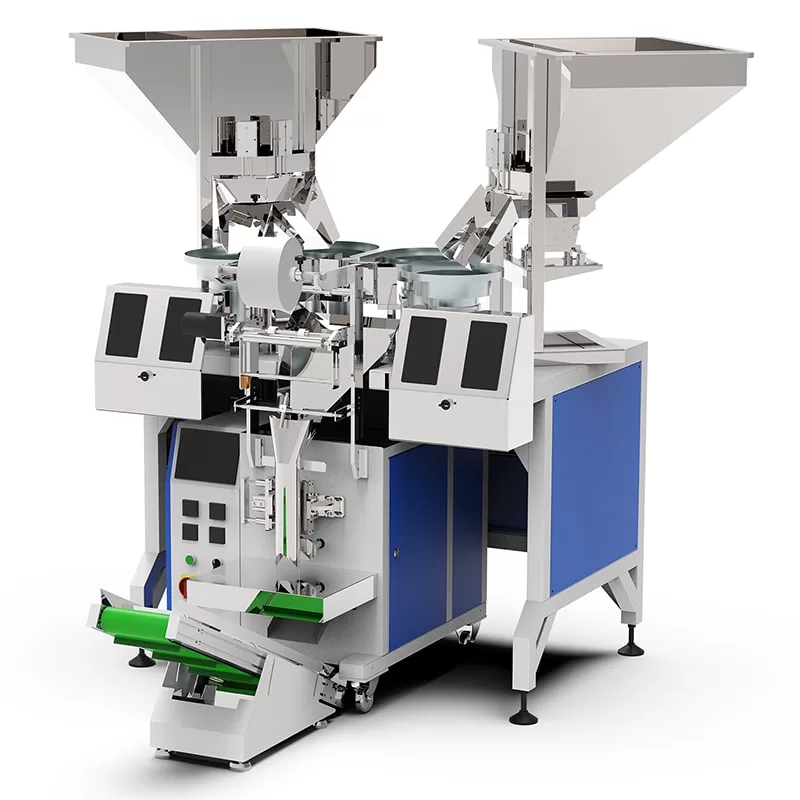

Multi head automatic weighing packing machine Suitable for automatic loading, weighing, and packaging tasks of various types of ceramic tile positioning crosses/light and small plastic parts,etc.
